Newline Interactive Newline DV Flux Indoor Creative LED Display

Newline DV Flux Indoor Creative LED Display

Newline DV Flux Indoor Creative LED Display

Direct View LED Korporativ Təhsil Ali Təhsil
Screen Size8", 12", 27"
Resolution240 x 540; 192 x 432; 160 x 360; 120 x 270; 480 x 1080; 384 x 864; 320 x 720; 80 x 180
Brightness600-800 nits
OSAndroid
Təklif Al Downloads
18model kodu
8yükləmə linki
10istifadə ssenarisi

Overview

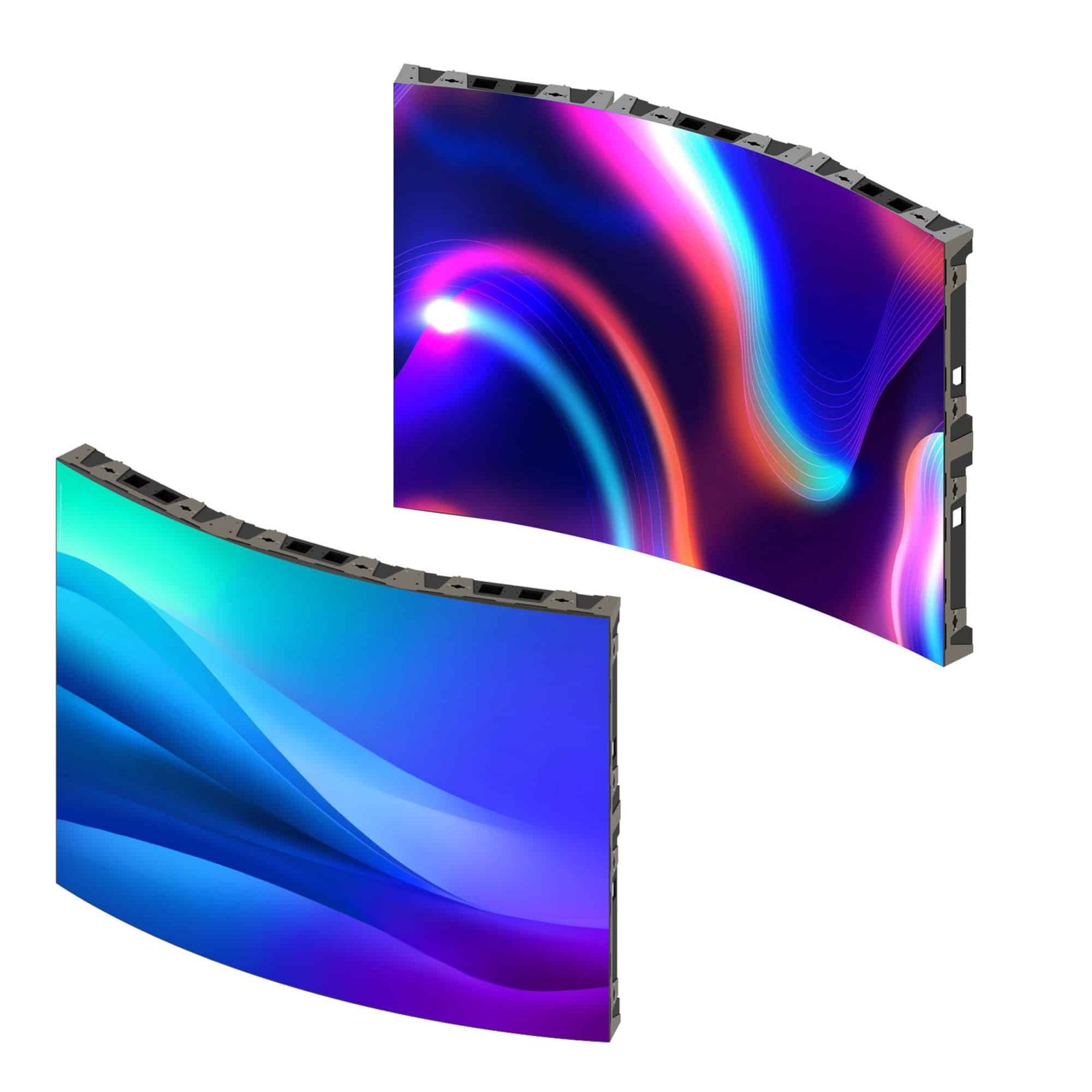

Newline DV Flux Indoor Creative LED Display

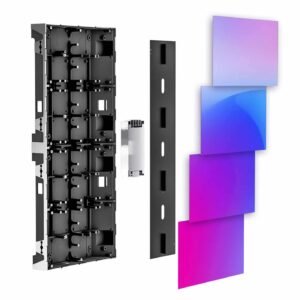

GOB high protection uses advanced encapsulation technology to create a durable, sealed surface that stands up to demanding environments. This specialized treatment makes the display resistant to water, dust, and moisture while also providing strong protection against impacts, oxidation, and static buildup. The result is a more robust, reliable display that maintains performance and visual quality even in challenging conditions. Compared to traditional soft modules, the DV Flux series uses a direct hard-link interface to connect to the HUB board—eliminating ribbon and power cables to reduce potential failure points and improve overall stability. This streamlined, lightweight design features a single interface that supports hot-swapping, making maintenance faster, simpler, and more convenient.

Installation notes: Newline DV Flux Indoor Creative LED Display Indoor Creative LED Display

Support and training: Online Knowledge Base and FAQs Contact Tech Support Meet the Newline Training Team

Features

  • TranslateLive powered by Newline
  • Newline Signage Pro
  • Newline Engage Cloud
  • Newline Display Management
  • Newline Launcher powered by DisplayNote
  • Pixel Pitch (mm)
  • Pixel Configuration
  • Brightness
  • Max Power
  • Average Power

Available Models

IP20 TT-8624QP TT-9824QP TT-5524QP TT-6524QP TT-7524QP TT-5524QPRO TT-6524QPRO TT-7524QPRO TT-8624QPRO TT-9824QPRO TT-6524ZPRO TT-7524ZPRO TT-8624ZPRO TT-5524ZPRO TT-6523C TT-7523C TT-8623C

Specifications

Screen Sizes 27", 43", 55", 65", 75", 80", 85", 86", 98", 115", 120", 135"
Resolution 240 x 540; 192 x 432; 160 x 360; 120 x 270; 480 x 1080; 384 x 864; 320 x 720; 80 x 180
Brightness 600; 600 - 800; 800-1000; 1000
Contrast 7,000 : 1; 15,000 : 1; 20,000 : 1
Touch Points 40 Points of Touch
Display Technology LED
Operating System Android 13
Processor i5 12th Gen i7 12th Gen i7 12th Gen
Connectivity HDMI, USB-C, USB, OPS, Wi-Fi, Bluetooth, LAN, RJ45, RS232
Audio 20W Speakers
Power ≤500W/m²; ≤400W/m²; 300-450 W/m²; 450 W/m²; ≤170W/m²; ≤130W/m²; 100-150 W/m²; 150 W/m²
Weight 12.57 lbs
Pixel Pitch 1.25; 1.56; 1.87; 2.5; 0.625; 0.78125; 0.9375; 1.5625; 1.875; 3.75
Refresh Rate 3840; 3840-7680
Certifications Google EDLA, EDLA, FCC, CE, UL

Downloads

Newline DV Flux Sellsheet 2025 Corporate Catalog C5c6b824 2025 Education Catalog Ec5f8b78 2025 Higher Education Catalog Efb65833 Newline + Business Newline + Education Newline + Higher Education DV Series Ideal Viewing Distances Guide
